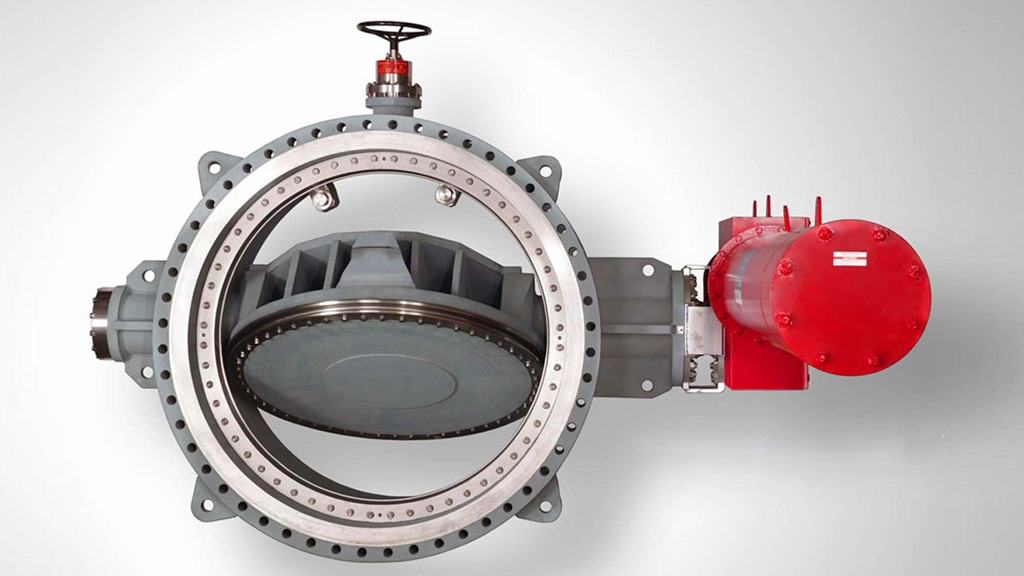

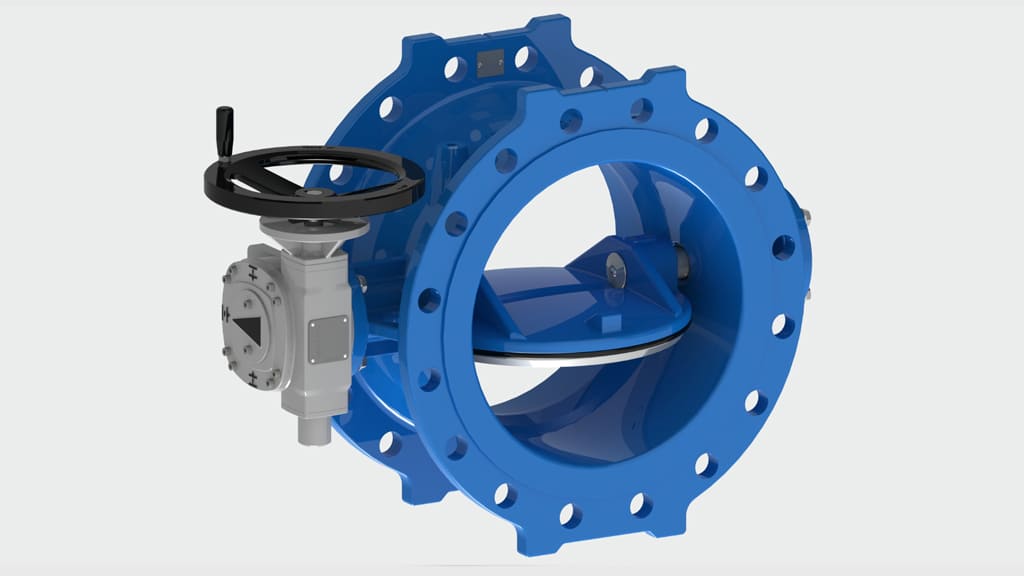

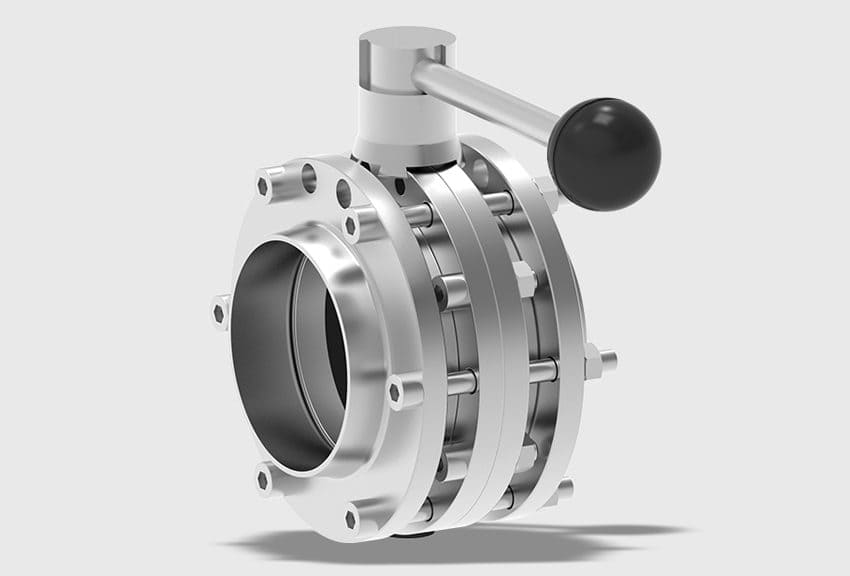

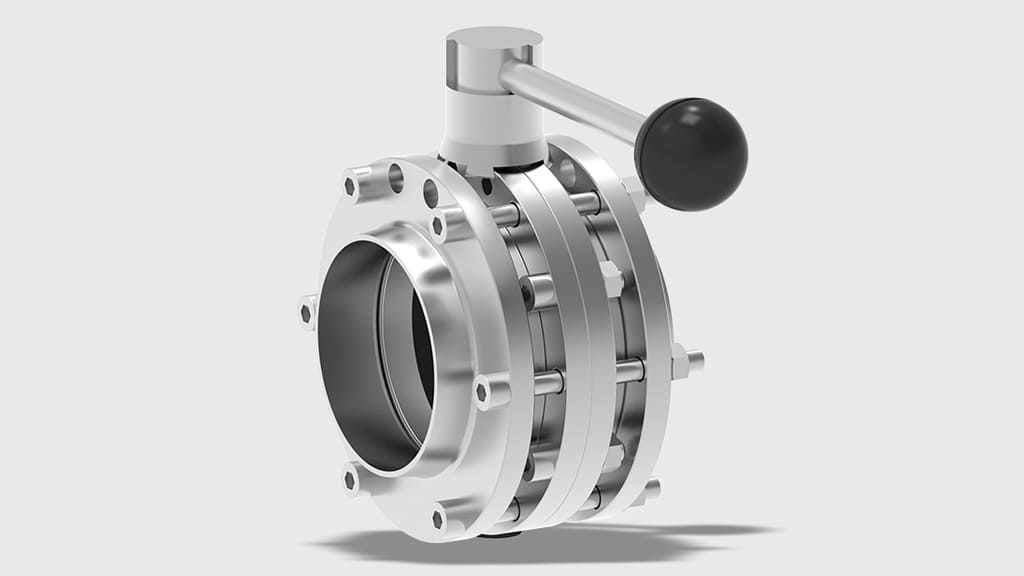

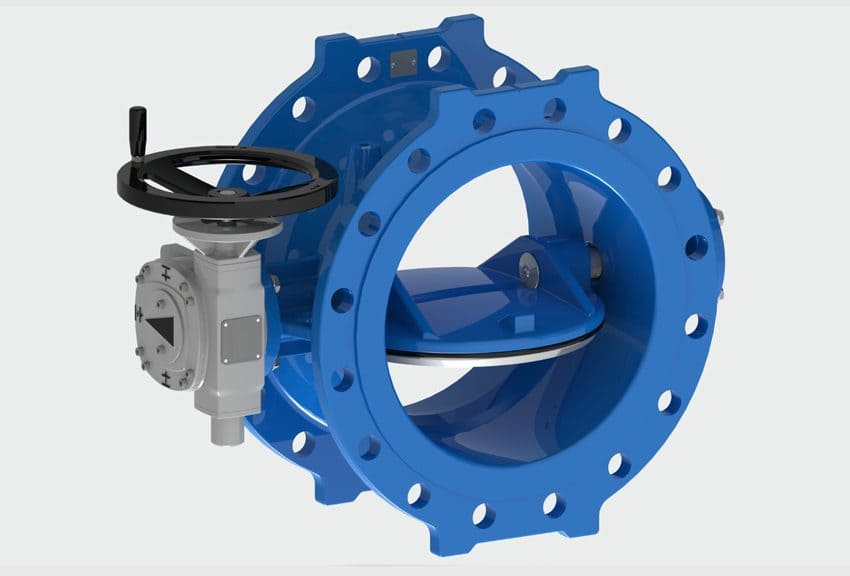

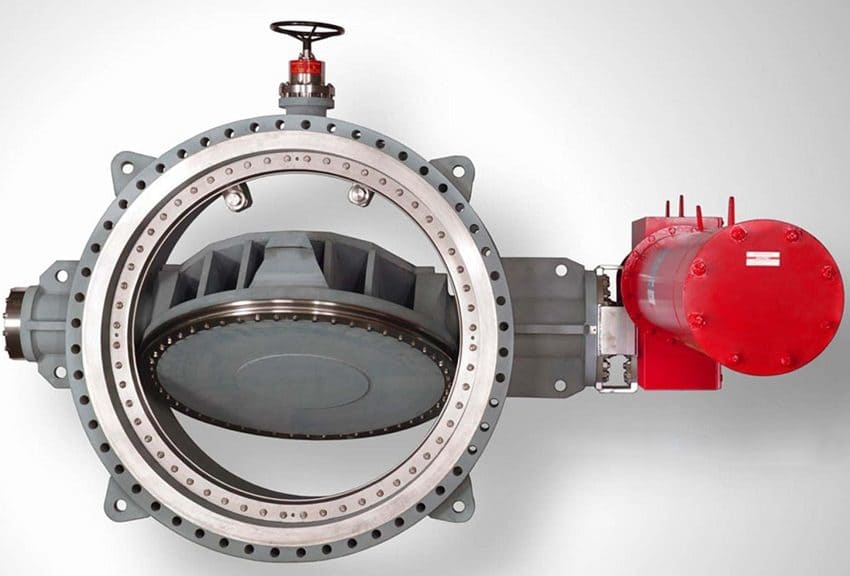

A BUTTERFLY VALVE is a valve that isolates or regulates the flow of a fluid. The closing mechanism is a disk that rotates. Operation is similar to that of a ball valve, which allows for quick shut off. BUTTERFLY VALVES are generally favored because they cost less than other valve designs, and are lighter weight so they need less support. The “butterfly” is a metal disc mounted on a rod. The disc is positioned in the center of the pipe. A rod passes through the disc to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, so it induces a pressure drop, even when open. Styles of BUTTERFLY VALVES on design parameters are Wafer-style, Lug-style, Rotary etc.,
We are trusted Butterfly Valve Manufacturers, Suppliers, Provider, Refurbish and Exporters of Butterfly Valves in Mumbai, Navi Mumbai, Thane and India, offering efficient flow control solutions for industrial, water, and HVAC systems.
JGV Types Of Butterfly Valves
There are different kinds of Butterfly Valves, each adapted for different pressures and different usage:
- Concentric Butterfly Valves – Have a resilient rubber seat with a metal disc.
- Double Offset (Eccentric or High Performance) Butterfly Valves – Have different type of materials is used for seat and disc.
- Triple Offset (Eccentric) Butterfly Valves – The seats are either laminated or solid metal seat design.
JGV Butterfly Valve Range & Specification
| Size | : | 40 mm (1-1/2″) – 1000 mm (40″) |
| Body & Type | : | Bi-Directional, Moulded Liner / Seat, Metal Seated (AWWA C504c), Double Eccentric, Triple Eccentric, Split Body, Rubber / Teflon Lining. |
| Operation | : | Lever, Gear, Actuator (Pneumatic, Electrical) |
| Design Standard | : | BS EN 593 / BS 5155 / API 609, Face to Face Dimensions to BS EN 593 / API 609, Wafer – ANSI B 16.5 |
| Pressure Rating | : | PN 10, PN 16, 150 #, 300 # |
| Testing Standard | : | BS EN 12266-1 (BS 6755-Part 1) / API 598 |

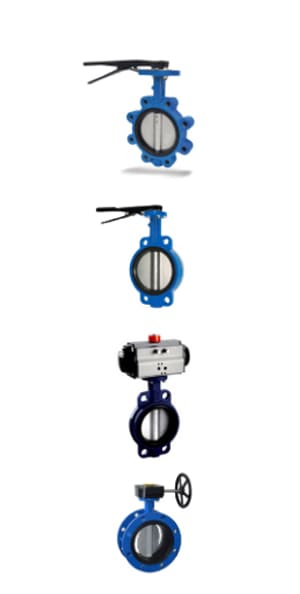

| End Connection | : | Wafer Type, Lugged Type, Flanged. |
| Material Of Construction | : |
Standard –
WCB, CF8,
CF8M, CF3,
CF3M, Cast
Iron On Request – CN7M, CF8C, Duplex Gr. 4A, Super Duplex Gr.5A / 6A , Nickel Alloy, Monel, Hastelloy, Inconel, SS 904L etc. |
| Trim | : | SS 410, SS 304, SS 316, SS 304L, SS316L, Gun Metal, Monel |
| Customization (On Request) | : |
|
General Applications:
- Cooling & Circulating of Water, Air, Gases etc.
- In Service Industry such as Fire Protection Services, Vacuum Service, Slurry & Corrosive Services, High Pressure & Temperature Service, Throttling Services etc.
- In Process Industry such as Food, Chemical and Pharmaceutical etc.
