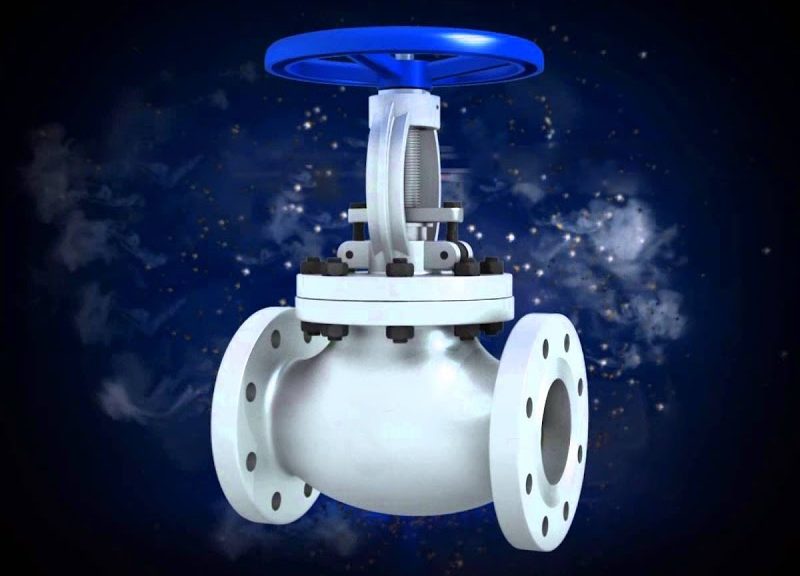

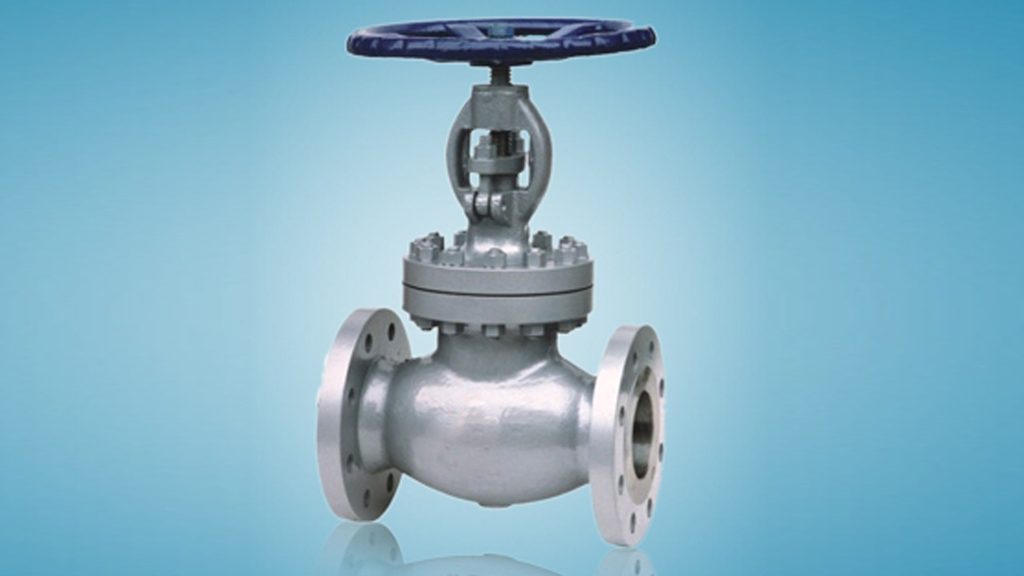

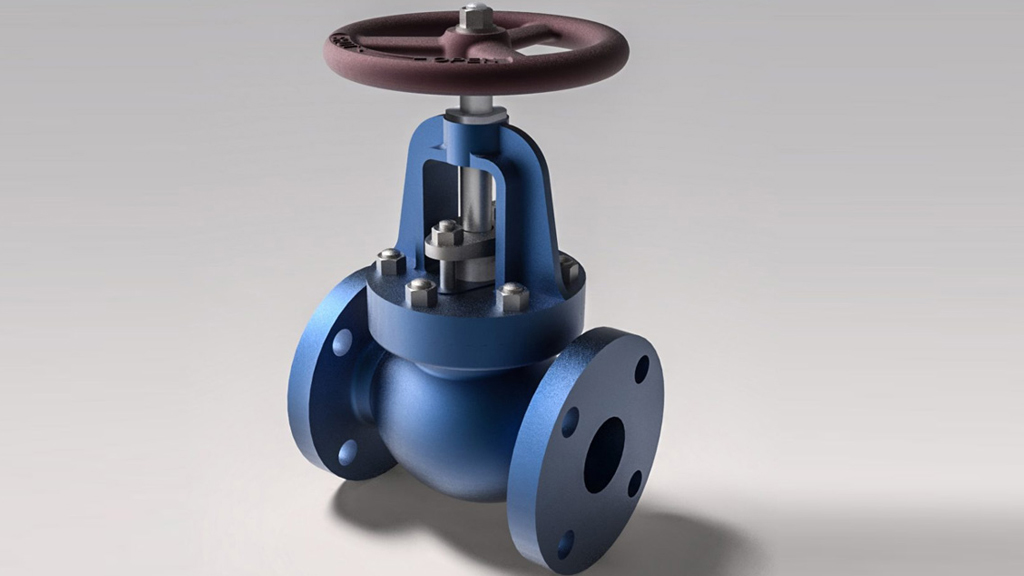

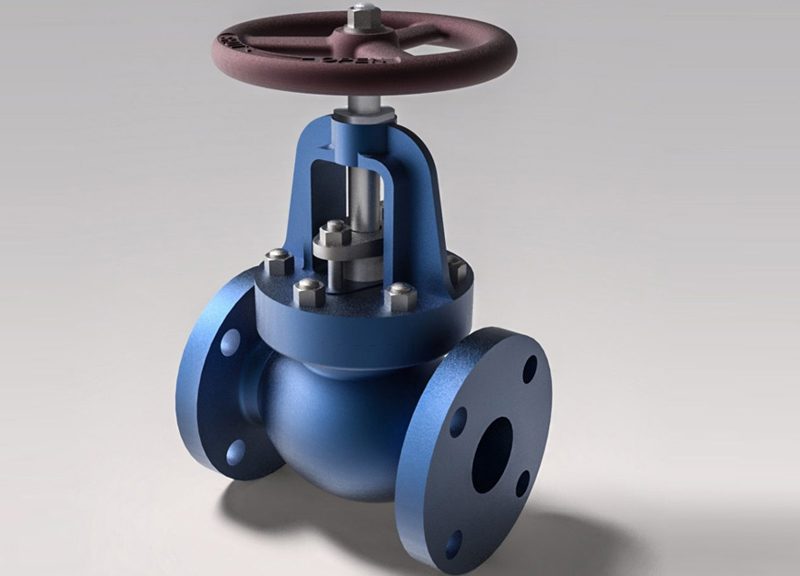

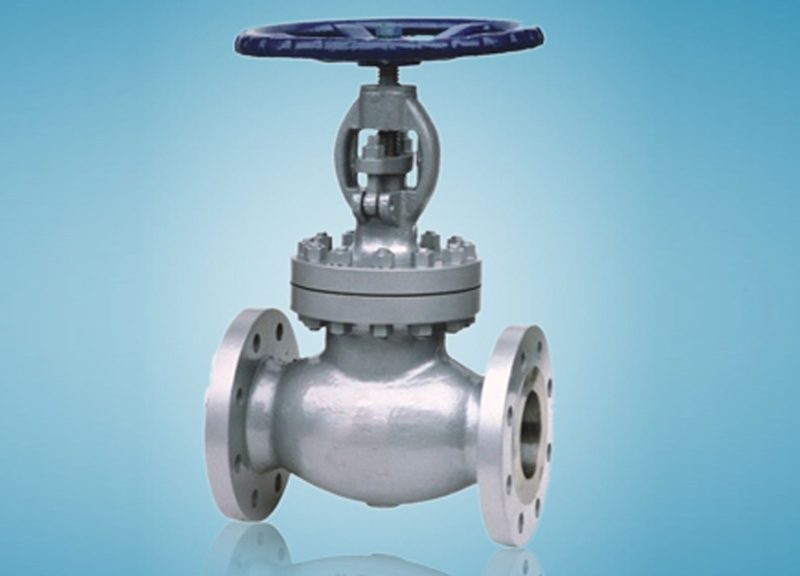

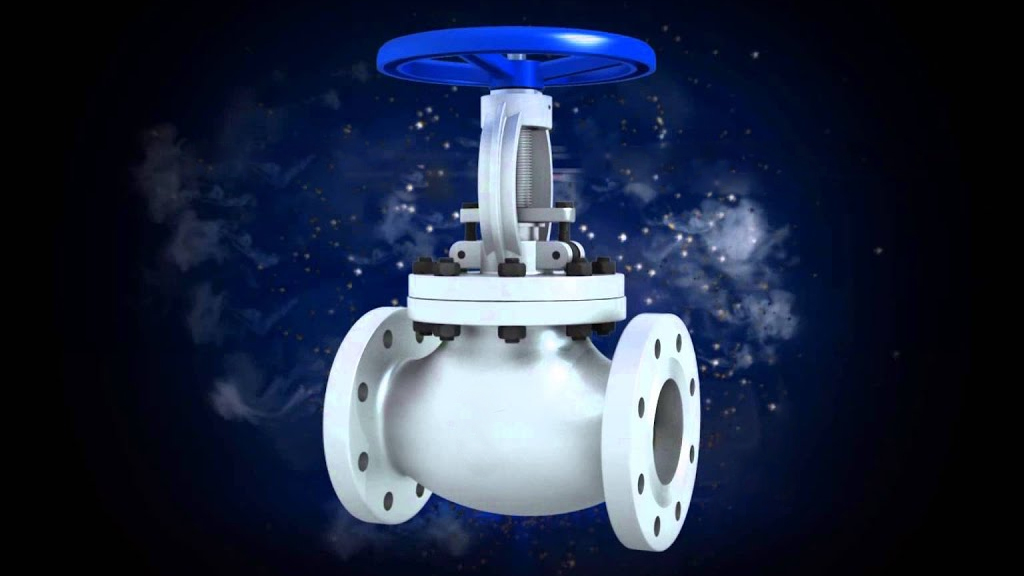

A GLOBE VALVE is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body. GLOBE VALVES are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc or disk. In GLOBE VALVES, the plug is connected to a stem which is operated by screw action using a hand-wheel in manual valves. Typically, automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.
JGV offer quality approved range of GLOBE VALVES as per prevailing Industry Standards and as well Client Specifications & Design in varied standard and high grade raw material, to attain maximum level of client satisfaction.
We are trusted Globe Valve Manufacturers, Suppliers, Provider, Refurbish and Exporters of Globe Valves in Mumbai, Navi Mumbai, Thane and India, offering precise flow regulation and reliable control solutions for industrial, petrochemical, water, steam, oil & gas, and HVAC systems. Globe valves are designed for efficient start, stop, and throttling of fluid flow through a pipeline using a movable disc and stationary seat arrangement, providing excellent control where accurate modulation of pressure and flow is required.
JGV Types Of Globe Valves

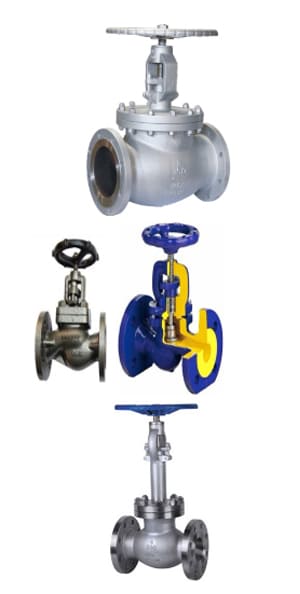

- Cast Steel Globe Valve / Forged Steel Globe Valve
- Pressure Seal Bonnet Globe Valve
JGV Globe Valve Range & Specification
Cast Steel Globe Valve :
| Size | : | BB – 50 mm (2″) – 700 mm (28″), PSB – 50 mm (2″) – 500 mm |
| Body & Type | : | Bolted Bonnet (BB) / OS & Y, |
| Operation | : | Hand Wheel, Gear, Actuator (Pneumatic, Electrical) |
| Design Standard | : | BS 1873 / ANSI B 16.34, Face to Face Dimensions ANSI B 16.10, Flanged ANSI B 16.5 |
| Pressure Rating | : | PN 6, PN 10, PN 16, PN 25, PN 40, PN 64, 150#, 300#, 600#, 900#, 1500#, 2500# |
| Testing Standard | : | BS EN 12266-1 (BS 6755, PART 1) |
| End Connection | : | Butt-weld, Flanged RF Serrated |
| Material Of Construction | : |
Standard-
BB
–
WCB
/
WCC,
LCB
/
LCC,
CF8,
CF8M,
CF3,
CF3M
PSB – WCB, CF8, CF8M, WC1, WC6, WC9, C5, C12, C12A, On Request- CN7M, CF8C, Duplex Gr. 4A, Super Duplex Gr.5A / 6A , Nickel Alloy, Monel, Hastelloy, Inconel, SS 904L etc. |
| Trim | : | 13% CR. / SS 410, SS 304, SS 316, SS 304L, SS 316L, Gun Metal |
| Customization (On Request) | : |
|
Pressure Seal Globe Valve :
| Size | : | 50MM to 500MM |
| Body & Type | : | Pressure Seal Bonnet, OS & Y Type, |
| Operation | : | Hand Wheel, Gear, Actuator (Pneumatic, Electrical) |
| Design Standard | : | BS 1873 / ANSI B16.34 |
| Pressure Rating | : | 900#, 1500#, 2500# |
| Testing Standard | : | BS EN 12266-1 (BS-6755- PART-1), Face to Face Dimensions As Per ANSI B16.10, Flange Drilling ANSI B16.5 RF Serrated. |
| End Connection | : | Flanged, Butt Weld. |
| Material Of Construction | : |
Standard-
WCB,
CF8,
CF8M,
WC1,
WC6,
WC9,C5,
C12,
C12A
Other Grades on Request – CF3, CF3M, CN7M, CF8C, Duplex- Gr. 4A, Super Duplex- Gr. 5A, Super Duplex- Gr. 6A, Nickel Alloy, Monel, Hastelloy, Inconel, SS 904L etc. |
| Trim | : | 13% Cr. / SS 410, Stellited / Hard Faces, SS 304, SS 316. |
| Customization (On Request) | : |
|
Forge Steel Globe Valve :
| Size | : | 15 mm (1/2″) – 50 mm (2″) |
| Body & Type | : | Bolted Bonnet (BB) / Welded Bonnet (WB), Solid Plug, Full Bore, Nipple Extension, OS & Y |
| Operation | : | Hand Wheel |
| Design Standard | : | BS 5352 / ANSI B 16.34 |
| Pressure Rating | : | 800#, 1500#, 2500# |
| Testing Standard | : | BS EN ISO 12266-1 (BS 6755, Part-1) |
| End Connection | : | Butt-weld, Weld – Flanged, Socket Weld, Screwed BSP or NPT |
| Material Of Construction | : |
Standard
–
A105,
LF2,
F304,
F304L,
F316,
F316L,
F22
On Request – F9, F11, F91, F321, F347, Alloy-20, Super Duplex, Nickel Alloy, Monel, Hastelloy, Inconel, SS 904Letc. |
| Trim | : | 13% CR. / SS 410, SS 304, SS 316, SS 304L, SS 316L, Stellited, Monel |
| Customization (On Request) | : |
|
General Applications:
- Good shutoff and throttling capability
- Easy to machine or resurface the seats
- With disc not attached to the stem, valve can be used as a stop-check valve
